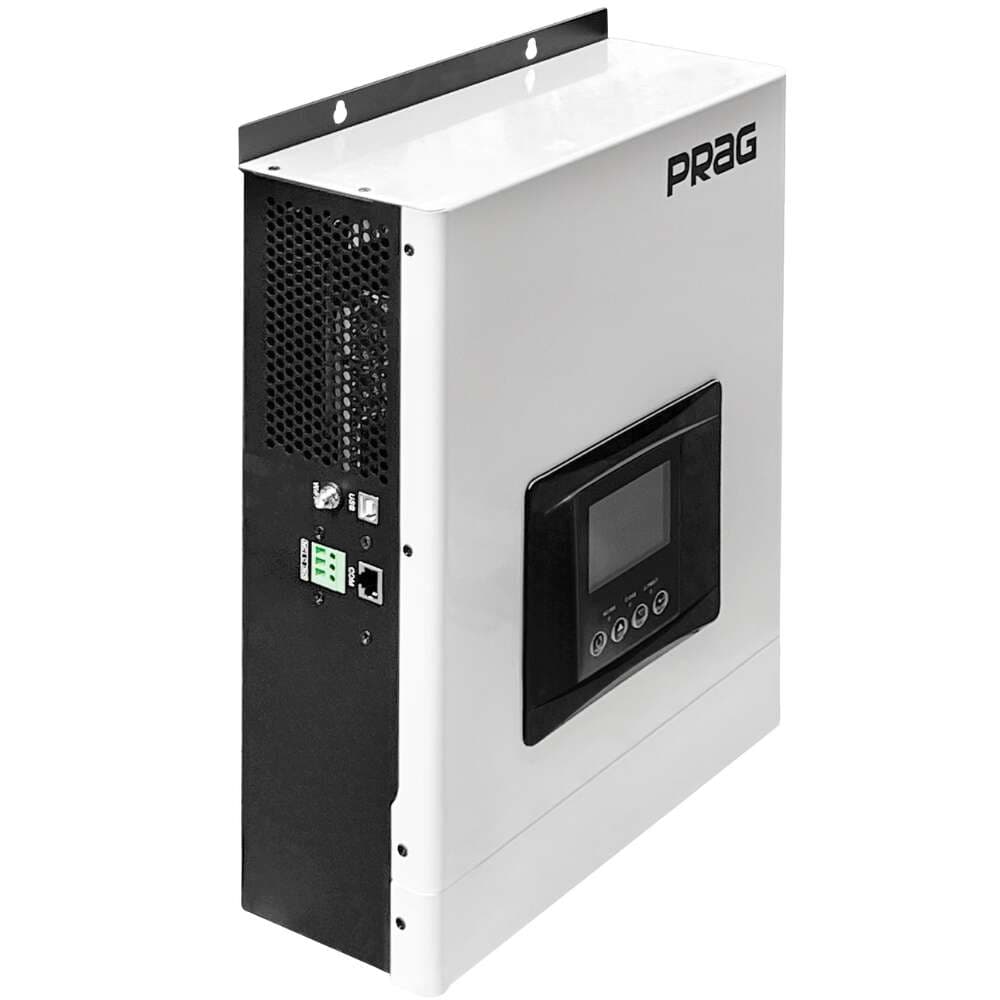

The 3kw/24V Hybrid Inverter combines efficient performance and versatility, making it an ideal solution for off-grid solar energy systems. Designed to handle demanding energy needs, it ensures stable, reliable power for homes and businesses.
Key Features
Inverter Performance:
- Rated Power: 3000VA/3000W with a Surge Power of 6000W.
- Waveform: Pure sine wave for smooth and stable energy delivery.
- Efficiency: High performance with a peak inverter efficiency of 90–93%.
- Fast Response: Transfer time as low as 10ms (UPS/VDE4105) or 20ms (APL).
AC Input:
- Voltage Range: 230VAC ±5% with selectable ranges for UPS, APL, or VDE4105 modes.
- Frequency: Auto-sensing for 50Hz or 60Hz compatibility.
Battery Management:
- Voltage: 24VDC system with floating charge voltage at 27.4VDC.
- Overcharge Protection: Safeguarded at 30VDC for extended battery life.
Solar & AC Charging:
- Maximum PV Array Power: Supports up to 3000W for high solar input capacity.
- MPPT Voltage Range: 60–360VDC for optimized solar energy harvesting.
- Charge Current: Maximum of 100A for both solar and AC charging.
Compact and Durable Design:
- Dimensions: Space-saving 290x367x111mm with a weight of 6.6kg (net).
- Temperature Range: Operates between 0°C to 50°C and stores safely at -15°C to 60°C.
Certification and Warranty:
- Compliance: CE-EMC+LVD certified (EN6100-6-3, EN6100-6-1, EN IEC62109-1/2).
- Warranty: 1-year coverage for peace of mind.
The 3KW/24V Hybrid Inverter offers clean, consistent, and efficient power, making it an excellent choice for any off-grid energy solution.
