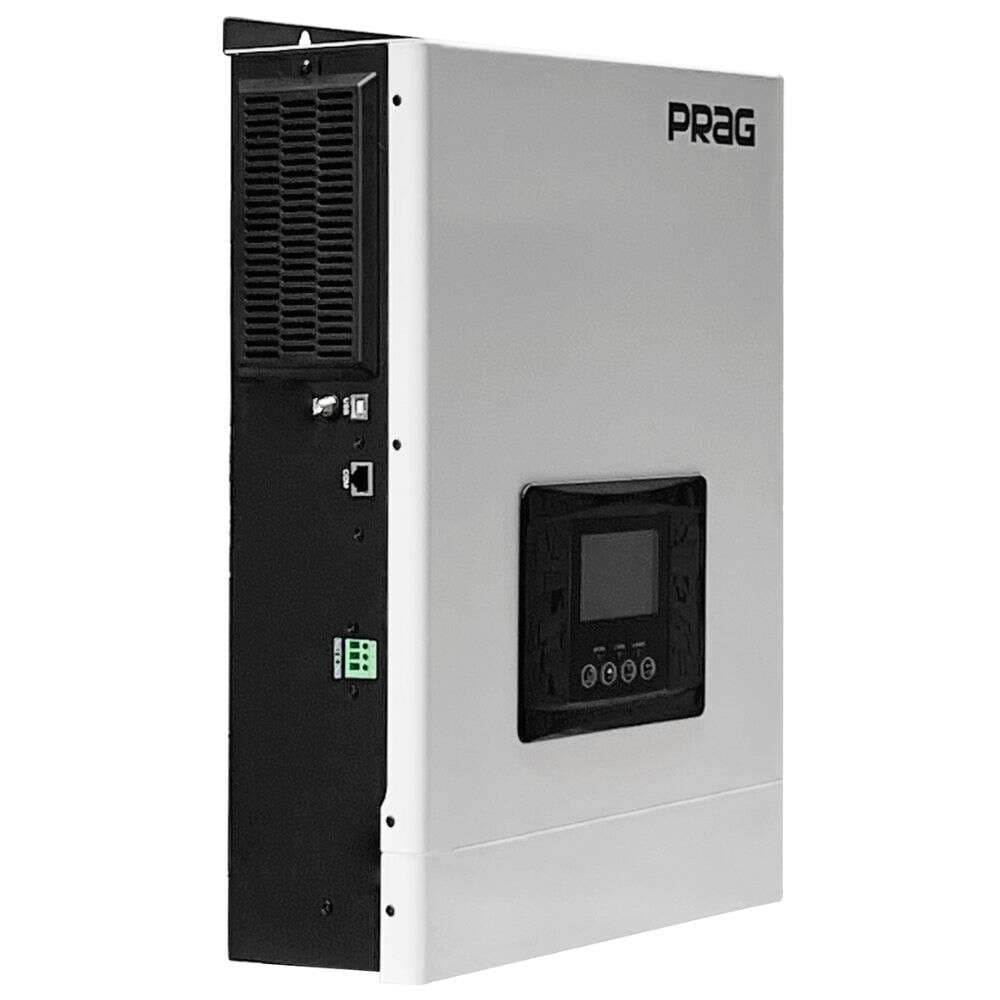

The 5.5KW/48V Hybrid Inverter is a high-performance solar inverter designed to deliver seamless energy management for residential and commercial applications. With advanced features and robust specifications, it ensures reliable and efficient energy conversion.
Key Specifications:
Inverter Output:
- Rated Power: 5500W for consistent load handling.
- Surge Power: Handles peaks up to 11000W.
- Waveform: Pure sine wave for clean, stable output.
- Efficiency: Peak efficiency ranges from 90% to 93%.
- Transfer Time: Quick transfer of 10ms (UPS mode) / 20ms (APL mode).
AC Input:
- Voltage: Operates at 230VAC ±5%.
- Selectable Voltage Ranges:
- 170–280VAC (UPS mode).
- 90–280VAC (APL mode).
- 184–253VAC (VED4105 mode).
- Frequency Range: Auto-sensing for 50Hz/60Hz compatibility.
Battery System:
- Nominal Voltage: 48VDC for optimized battery integration.
- Charging Features:
- Floating charge voltage: 54.8VDC.
- Overcharge protection: 60VDC.
Solar Charger & AC Charger:
- Maximum PV Input Power: Supports up to 6000W.
- MPPT Voltage Range: Operates efficiently within 60–360VDC.
- Maximum PV Input Current: 28A.
- Charging Algorithm:
- 3-step for flooded, AGM, GEL, and lead-acid batteries.
- 4-step for lithium-ion batteries.
- Maximum Charge Current: 100A (solar and AC charging).
Durable Design:
- Dimensions: Compact size (318 x 454 x 122.5 mm).
- Lightweight: Net weight of 9kg for easy installation.
- Operating Conditions: Designed for 0°C to 50°C and 5–95% relative humidity.
Certifications & Warranty:
Certified for safety and performance under CE-EMC+LVD standards (EN6100-6-3, EN6100-6-1, EN IEC62109-1, EN IEC62109-2). Backed by a 1-year warranty for peace of mind.
The 5.5KW/48V Hybrid Inverter is your ideal choice for efficient, reliable, and sustainable energy management.
